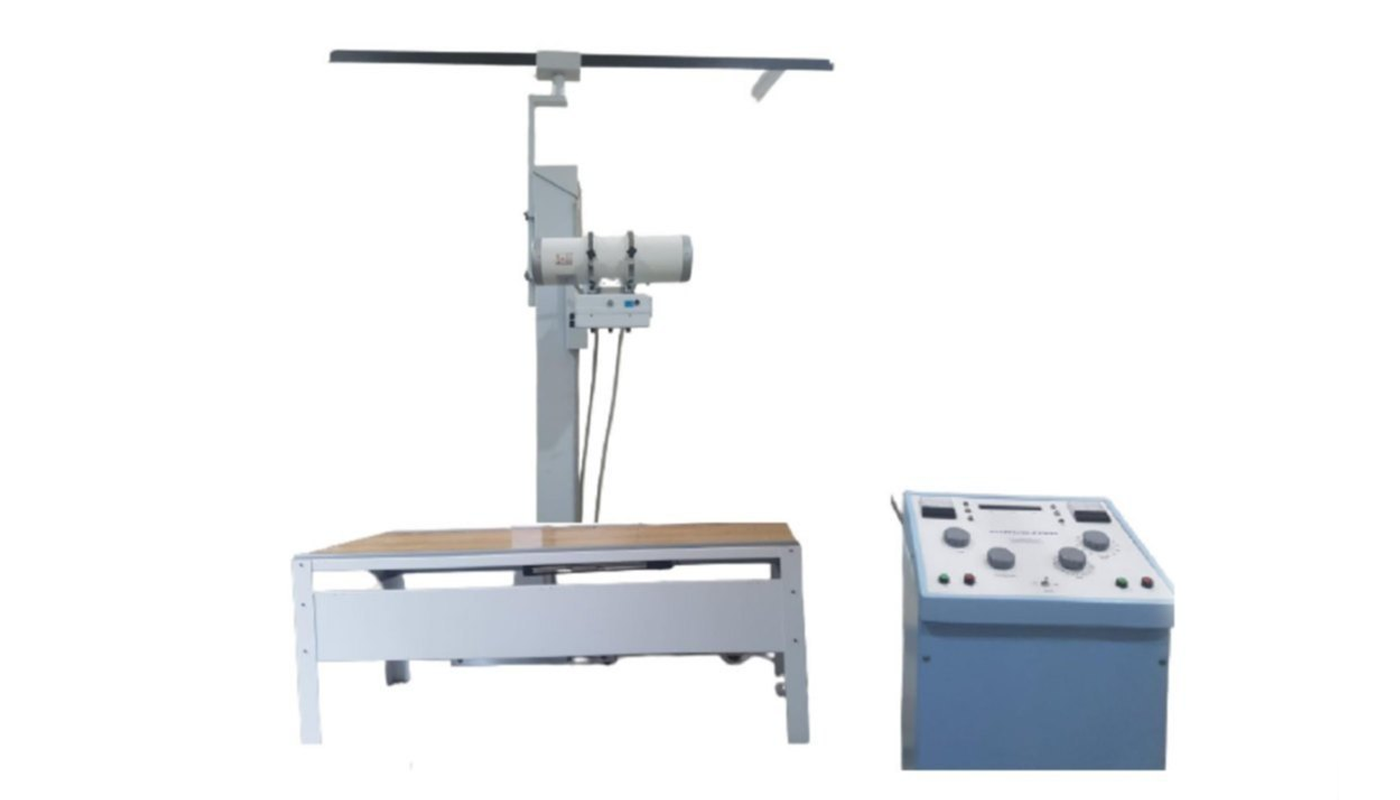

Specifications & Features

• Complies to highest radiation safety standards Laid down by Atomic Energy Regulatory Board (AERB).
• -Provides high end image quality and resolution to Meet best diagnostic radiology investigations
• -Rails for horizontal movement of the column
• -Compatible with horizontal as well as multi cone table
• -User friendly design
• -Electronic overload protection device
• 1.RADIOGRAPHY : 300mA,125kV, 24kW
• 2.TUBE CURRENT : 50mA, 100 mA, 200 mA, 300 mA
• 3.TUBE VOLTAGE : 45 to 125 kVp (15 Steps)
• 4.TIMER : 0.02-5 Seconds (24 Steps)
• 5.X-RAY TUBE : Indian / Imported Rotating Anode
• 6.COLLIMATOR : Manual Light Beam Diaphragm
• 7.POWER SUPPLY : Single Phase 230 , 50 Hz
• 8.RECTIFICATION : Full Wave Rectified Using Silicon Rectifiers
• SALES AND SERVICE PROVIDOR : MEDICAL SOLUTION
